KAIDONG Concrete Cement Roof Tile Forming / Making Machine

  • KAIDONG Concrete Cement Roof Tile Forming / Making Machine
  • KAIDONG Concrete Cement Roof Tile Forming / Making Machine
  • KAIDONG Concrete Cement Roof Tile Forming / Making Machine
  • KAIDONG Concrete Cement Roof Tile Forming / Making Machine
  • KAIDONG Concrete Cement Roof Tile Forming / Making Machine
  • KAIDONG Concrete Cement Roof Tile Forming / Making Machine
KAIDONG Concrete Cement Roof Tile Forming / Making Machine

KAIDONG Concrete Cement Roof Tile Forming / Making Machine

Product Description

KQ8-130/220 Automatic Hydraulic Concrete Roof Tile Making Machine
6-9 Pieces/Minute
FOB Ningbo Price: 25000-30000USD
KQ1000 Concrete Roof Tile Making Machine
2-5 Pieces/Minute
FOB Qingdao Price: 5000-10000USD
Product Description

KQ-20 Automatic Roll Pressing Concrete Roof Tile Making Machine features

  KQ-20 automatic roll pressing concrete roof tile making machine is an automatic extrusion production system, it is suitable for the region that have big market, it is a large-scale concrete roof tile production equipment. The production process is putting sand, cement, water and other raw materials into the mixer, after mixing, forming, tinting color, acrylic coating, racking, maintaining, releasing mould, it is finished. All the process is controlled automatically. Just need to change different extrusion head and the mould, can produce different shape tiles. The advantage of the system is higher capacity, more automatic, simple technological process, easy to operate.
KQ-20 Roll Pressing Concrete Roof Tile Making Machine Technical Parameter
Product Name
KQ-20
Overall Dimension
25m(Installed)
Moulding Cycle
16- 20 Pieces/Minute
Forming Method
Roll Pressing
(No Vibration)
Weight of Main Machine
3.5 Tons
Total Machine Power
30KW
Capacity
8000- 10000 Pieces/Shift
(8Hours)
Main Tile Size
424*337mm
(Customized)
Operated Workers
12 Persons
Mould Type
CNC Making
(Automatic)

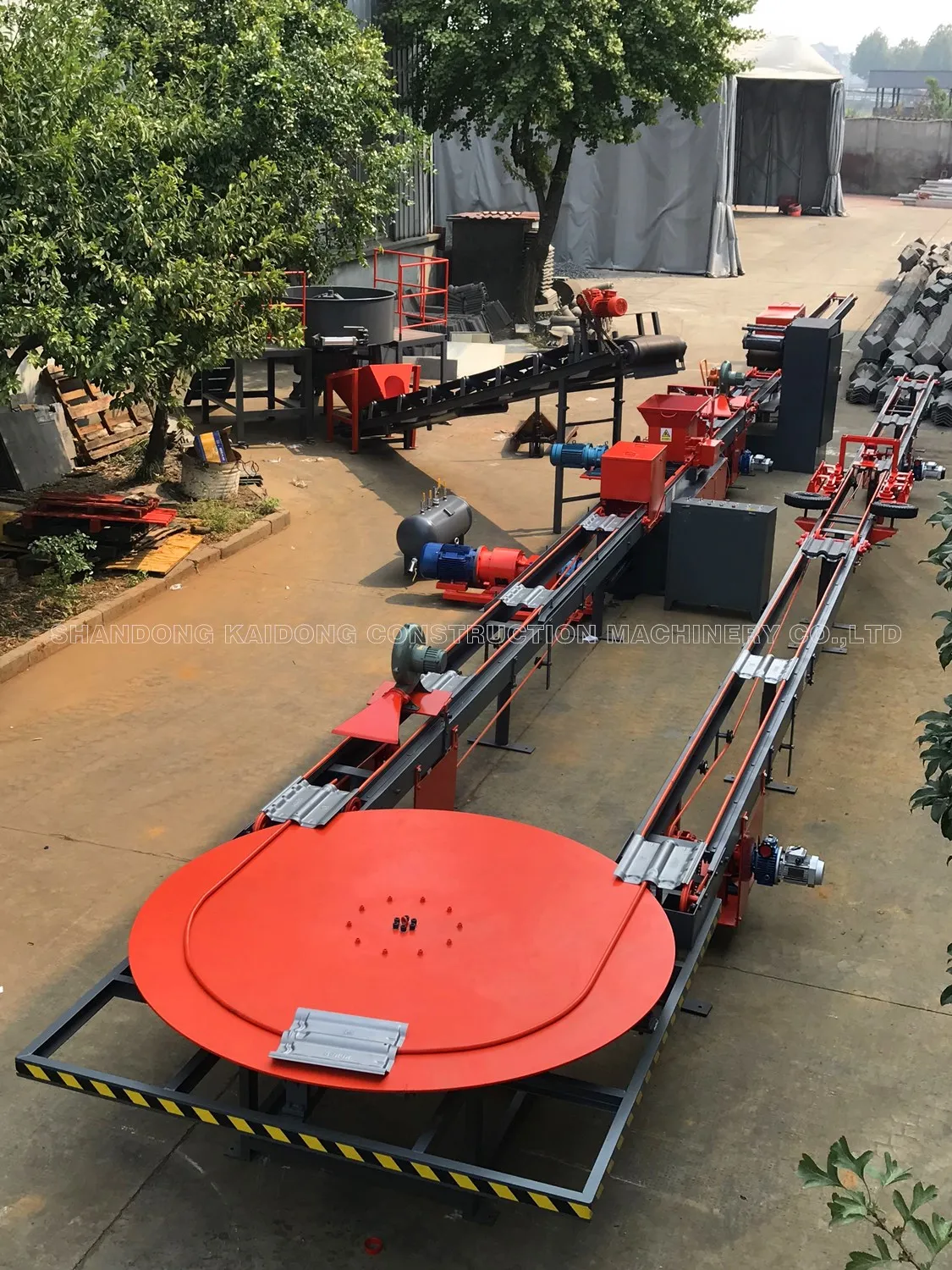

Production Line Composition
Name
Quantity
Main Forming Machine
1 Set
Lifting and Mixing System
2 Sets
Automatic Oil Spraying System
1 Set
Color Matching Machine
1 Set
Coloring Machine
1 Set
Acrylic Coating Machine
1 Set
Electric Control Cabinet
1 Set
Oil Tank
2 Sets
Steel/Aluminum Tile Mould
5000- 8000 Pieces

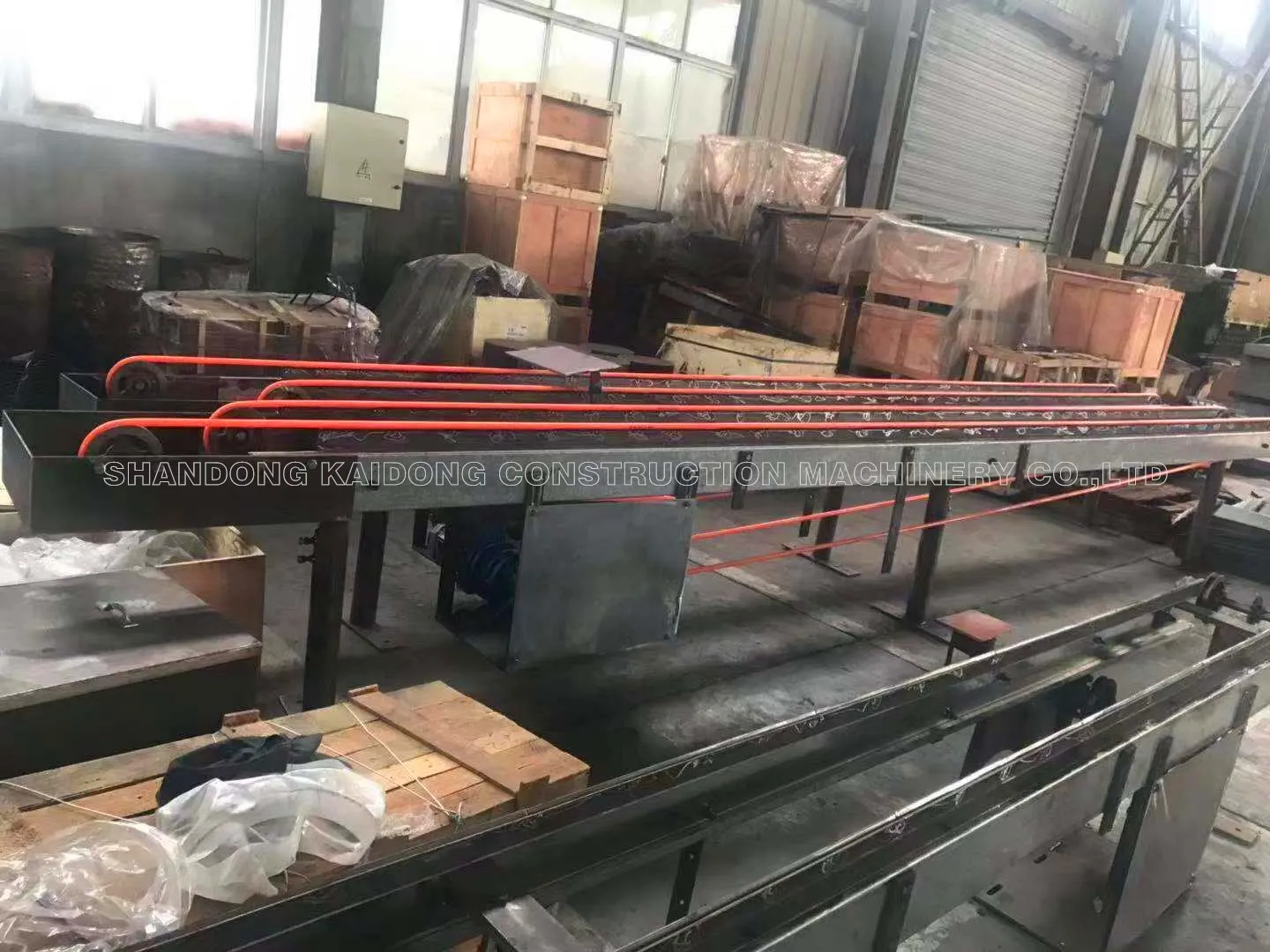

Semi-finished Material Conveyor Line
1 Set
Tile Mould Conveyor Line
1 Set
Blower and Conveyor Line
1 Set
Coloring Conveyor Line
1 Set
Acrylic Coating Conveyor Line
1 Set
Tile Conveyor Line
1 Set
Other Accessories Tile Mould
1 Set
Auxiliary Machine(Customer Owned by Himself)
Name
Specification
Quantity
Workshop
(10*30)m²
1 Space
Tile shelf
120 Pieces/Shelf
85 Sets
Manual Hydraulic Forklift
3 Tons
3 Sets
Air Compressor
W-0.9/7
1 Set
Maintenance Room
(10*3)m²
4 Set
Tile Yard
1500m²
4 Spaces
Consumables
Release Agent

Technological Process

  Tile mould---Spray release agent---(Sand, cement, water---Mixer---)Main forming machine---(Matching color---)Coloring machine---Acrylic machine---Tile shelf---Demold(---Tile mould)---Tile yard---Maintenance.
  Mix raw materials approximate 5 minutes without water, then mix raw materials 5-10 minutes with water, the rate of cement and sand is 1:1.8-2(50 KGs cement can produce 31-34 pieces of tile).
Detailed Images

Mainframe

Name: KQ-20 Automatic Roll Pressing Concrete Roof Tile Making Machine

Brand: KAIDONG
Original: China

  KQ-20 Automatic roll pressing concrete roof tile making machine has high forming speed, can make different shape of tiles according to different moulds. The tiles have been painted, colorful and strong anti-seepage water, strong anti-knock. Cement and yellow sand are the raw material of the tile. Tile machine produces tiles fast with high yields. It can produce 16-20 pieces of tiles each minute. It is the preferred choice for green building.

Mixer

Name: KQ500 Vertical Concrete Mixer
Brand: KAIDONG
Original: China

  Before using, connecting to the power source (according to the local power source requirement). Put 8kgs machine oil into gear case. Then, make the machine work for 5 mintues without anything. The next step, put the material (granules and glue) into the container. It takes 5-6 minutes to finish the mixing. After using, please clean the container.

Auxiliary Parts
Name: Mould, Steel/Aluminum Plate
Brand: KAIDONG
Original: China
  Pallet: Light structure. Super loading capacity. Service life is far more than other types of pallets. Sound appearance. Can be made according to the customers' requirements. Stacking or framing on the ground. Wide application.
Our Factory

KAIDONG MACHINERY

  SHANDONG KAIDONG CONSTRUCTION MACHINERY CO.,LTD founded in 1999, which is a machinery corporation specialized in all series of color concrete roof tile machine, which integrates the research, development, production, sales and after-sale service. Productions are under the operational guidance of the China Building Materials Xi'an Wall Materials Research and Design Institute, and State Building Materials & Industrial Wall and Roof Materials Quality Supervision and Testing Center. All products have passed ISO9001:2008 and SGS authentication. Depend on advanced technology, excellent quality, and perfect after-sale service, our concrete roof tile making machine is not only the best sold brand in the domestic market, but also sold to Taiwan, Japan, Vietnam, Indonesia, Cambodia, India, Libya, Mozambique, Botswana, South Africa and other more than 30 countries and regions.
Certifications
Clients from Abroad

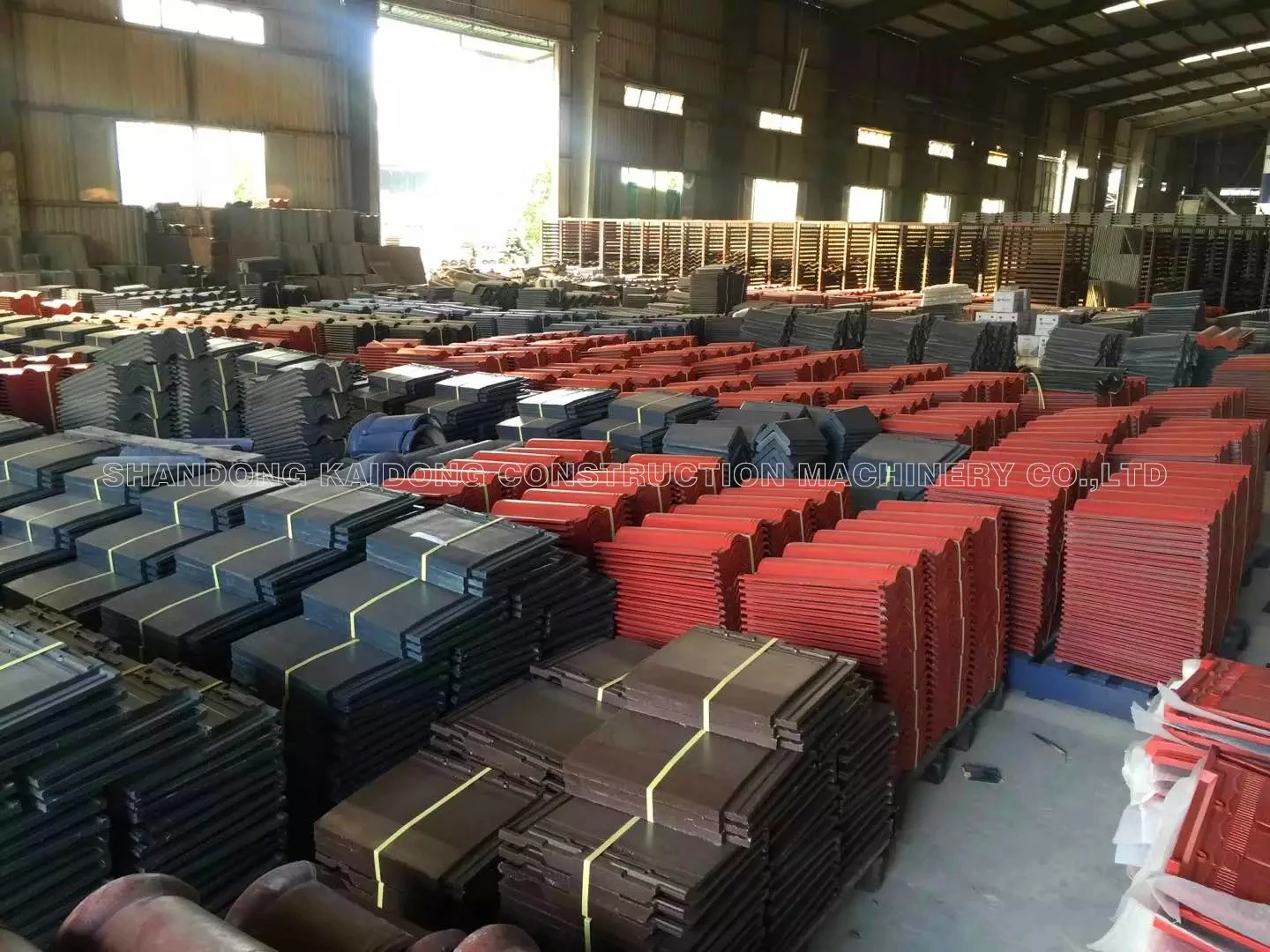

Packing & Delivery
Global Vision
Contact
  If you have interest about our machine, you are welcome to contact: +86 151 6553 9562.
  It's available at Whatsapp, Wechat, Messenger, Line, Telegram, imo and many other APPs.
  My e-mail address is: joey@kaiqianmachine.com.
  Office address: Comprehensive Bonded Zone, Lingong Road No.100, Linyi City, Shandong Province, China

Contact us if you need more details on Roof Tile Making Machine Price. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Tile Forming Machine、Tile Making Machinery. If these products fail to match your need, please contact us and we would like to provide relevant information.
