The control system is equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it only needs a trained person for operation rather than a professional one.

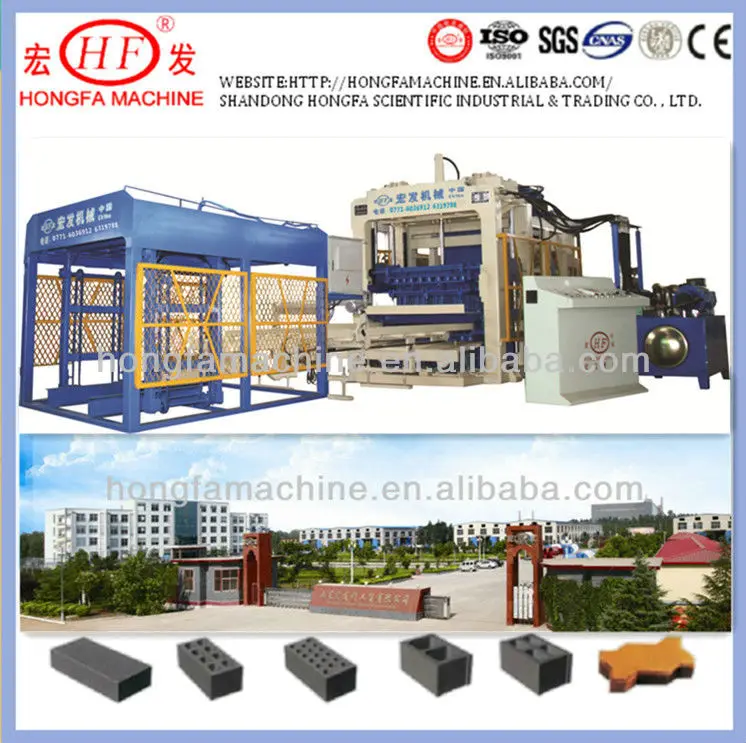

QT10-15 Insulation Block Machine in China, isolated block making machine hydraulic automatic block machine
Product Description
Our Company
Shandong Hongfa Machinery Co., Ltd is a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine, concrete mixing plant, mixer, Concrete Block Making Machine, concrete tile making machine and Concrete Pipe Making Machine with more than 20 years experience and being the biggest manufacturer in China at present. All the products are conformity with the standard of the state, and gets the ISO9001-2008 Quality System Certificate, also honored as 'One of the Top Ten Famous Brands of Bricks & Tile Field in China' and other honors.
Product Description
QT10-15 big typle hollow block cement making machine brick manufacturers
Brief introduction
Particular stronge and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density. Adopting synchronization vibration insures the products making average. The frequency can change according to different material to have to a optimal vibration way. The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trained one to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Overall Dimension | 9350×3000×2900(mm) |
Rated Pressure | 21MPa |
Main vibration form | Platform vibration |
Cycle Time | 15-25 seconds |
Vibrating Frequency | 2800-4500 rolls/minute |
Motors Power | 67kw |
Pallet Size | 1100*900(mm) |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Brick Style | Size mm | Cycle molding | QTY /Mould | Per hour |
Hollow brick | 400*200*200 | 15-20S | 10 | 2000pcs |
400*150*200 | 15--20S | 12 | 2400pcs | |
Prorous brick | 240*115*90 | 15--20s | 24 | 4320pcs |
Solid block | 240*115*53 | 15-20S | 52 | 10000pcs |
Certifications
Detailed Images

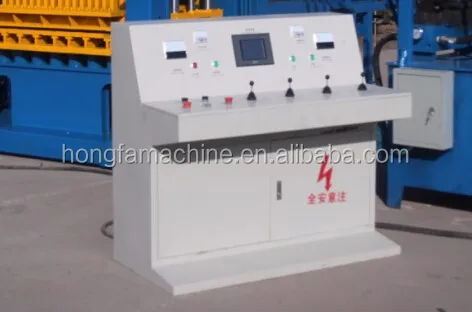

PLC
Mold
Applied to produce varies sizea and typs of comcrete blocks and bricks by replacing mould with corresponding specifications.
High manganese alloy, Molybdenum wire cutting, High temperature carburizing heat treatment
JS750 Mixing
Verticl Twin shaft positive style mixer, hight capacity and mixing even, bring materials elevator
PVC Pallet
1100*900*25mm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Semi-automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
FAQ
1. What equipment will be include in this production line ?
The simple production line including the block machine,Concrete Mixer,conveyor belt and stacker.
2. How about the water consumption ?
This block machine will use about 10 ton water per day.
3. Can you please tell me the area of these equipment ?
The equipment need around 6500m2.
4. How many worker need to operate the machine?
Totally need three worker,one worker for the wheel loader,one worker for the forklift, one worker control the PLC unit.
5. Can you change the voltage according to us ?
We can change the voltage into 220V/240V/380V/450V or others.
6. How many container will be needed ?
The block machine,mixer,belt and stacker need one 40 feet container.
