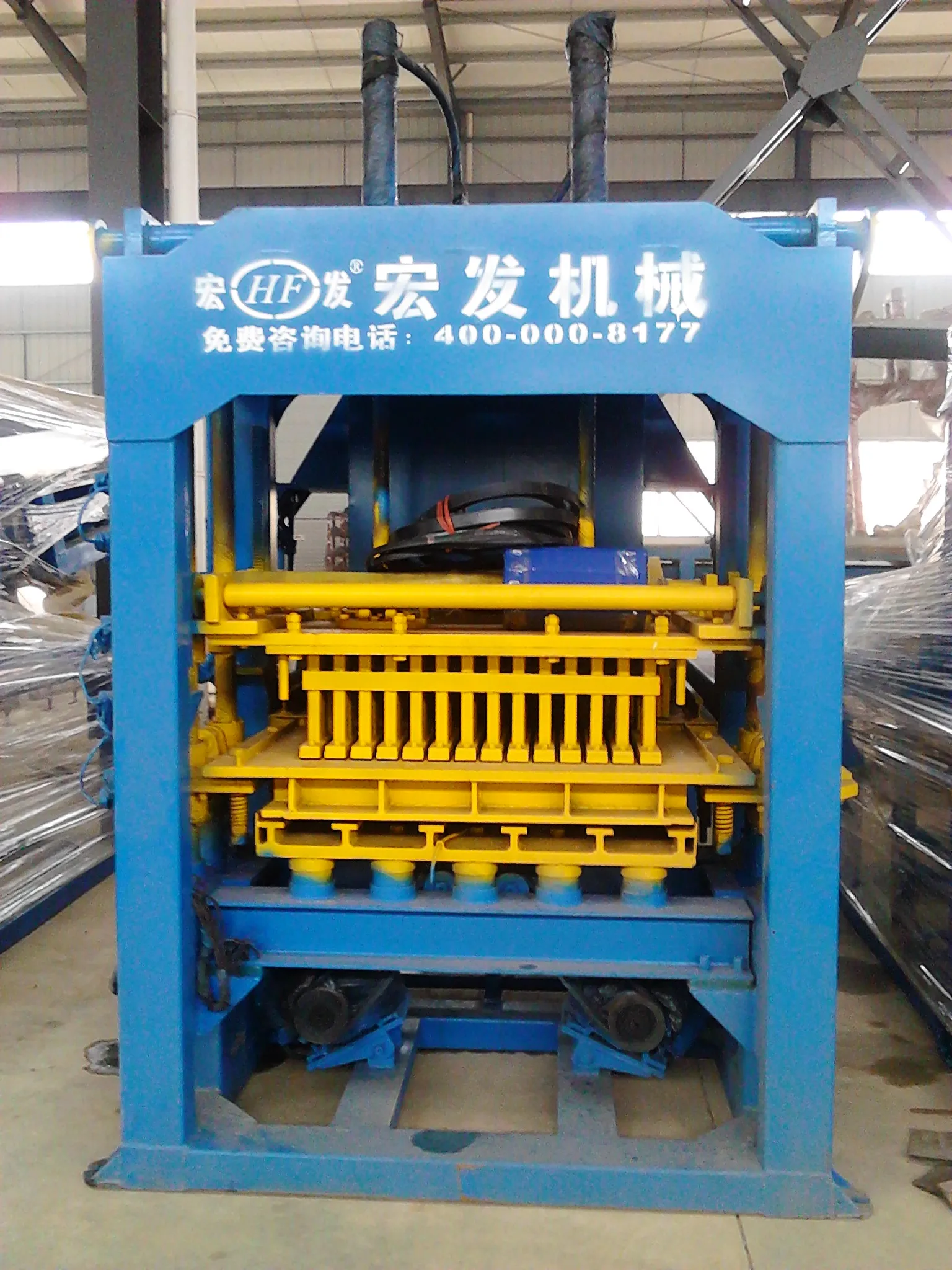

QT6-15C high productivity high density block making machine
Product Description
QT6-15C block brick production line automatic brick Hollow Block Making Machine
Brief introduction
1.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.
2.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.
3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,therefore ,different materials can be able to produce the high quality products.
4.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trained one to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Overall Dimension | 8300×2800×2900(mm) |
Rated Pressure | 21MPa |
Main vibration form | Platform vibration |
Cycle Time | 15-25 seconds |
Vibrating Frequency | 2800-4500 rolls/minute |
Motors Power | 51kw |
Pallet Size | 900*700(mm) |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Brick Style | Size mm | Cycle molding | QTY /Mould | Per hour |
Hollow brick | 400*200*200 | 15-20S | 6 | 1080~1440pcs |
400*150*200 | 20--25S | 7 | 1260~1680pcs | |
Solid block | 240*115*53 | 15-20S | 32 | 5760~7680pcs |
PLC
The control system is equipped with complete logic control, production
program, malfunction diagnosis
system and remote control function. So it only needs a trained person for operation rather than a professional one.
Hydraulic station
It is a compact oil hydraulic machine according to the international
standards.Many components from
abroad ensure the quality of machine and long service life.
Vibration system
The vibration system contains
platform and mould vibration so the
productions is very close-grained and produced quickly.
Mould
Applied to produce varies sizes and
typs of comcrete blocks and bricks
by replacing mould with
corresponding specifications.
Feeding system
Particular storage and discerption
material system icsure thefeeding
accuracy and avooding the effect of
exterior material.
Forwanrd transfer
Simple operation saves time and
effort.
Packaging | ||
Size | 2523*1950*2350mm | |
Weight | 5T | |
Packaging Details | All the main machine will be covered by plastic film to prevent the dust into machine. | |
Packaging | ||
Size | package as the machine | |
Weight | Total is 15t | |
Packaging Details | All the main machine will be covered by plastic film to prevent the dust into machine. | |
