QT6-15 automatic concrete hollow block machine cement brick machine

Product Description

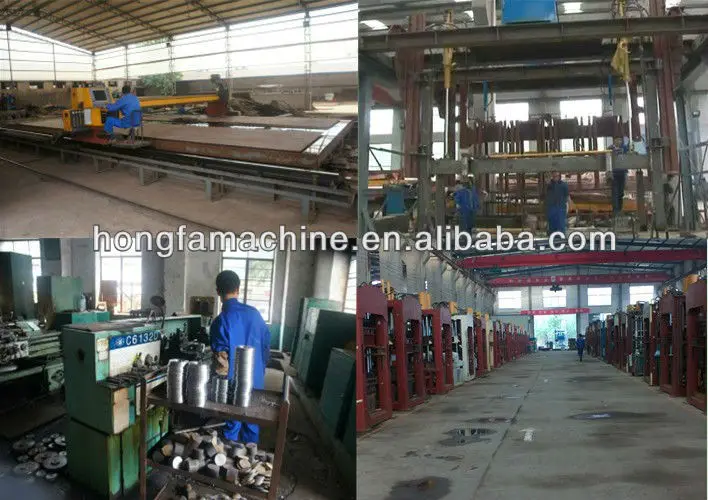

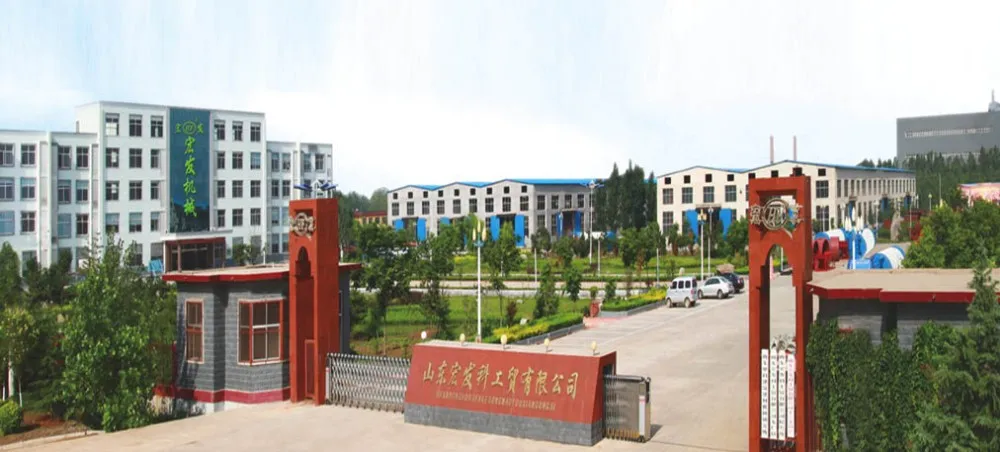

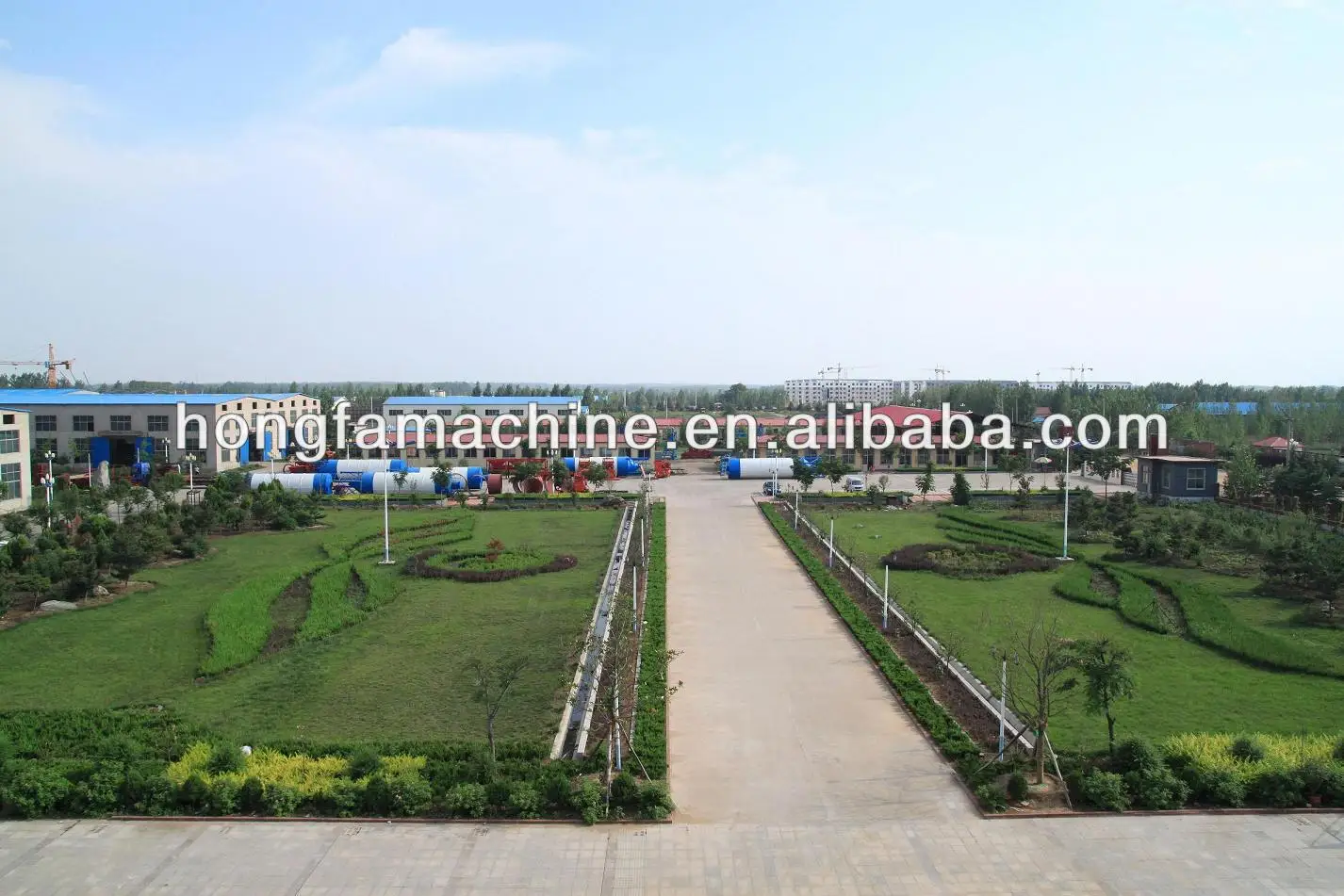

Our Company

Shandong Hongfa Machinery Co., Ltd is a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine, concrete mixing plant, mixer, Concrete Block Making Machine, concrete tile making machine and concrete pipe making machine with more than 20 years experience and being the biggest manufacturer in China at present. All the products are conformity with the standard of the state, and gets the ISO9001-2008 Quality System Certificate, also honored as 'One of the Top Ten Famous Brands of Bricks & Tile Field in China' and other honors.

Product Description

Product Application

1.It is a compact oil hydraulic machine according to the standard of intenational.many parts from abroad ensure the quality of machine and take from the power.

2.The vibraiton system contains platform vibraiton and mould vibration so the products are very close-grained and produced quickly.

3.The novel feeding system gives material exactly and average and asssures the products having a high density.

QT6-15 automatic conrete hollow block machine technical parameter

Overall dimension
7450*2450*3050mm
Rated pressure
16MPA
Main vibration form
platform vibration
Vibration frequency
4500-5100(r/min)
Pallet size
900*700
Mould material
16Mn steel ,processed by heat treatment
Machine material
Q235 National standard steel
Exciting Force
65KN
molding cycle
15-20S
Thickness of Machine
4-20mm
Motors& PLC &Hydraulic
Motor and PLC from Siemens, Hydraulic from Calyca Frequency Converter from VicRuns
Item
QTY/Mold
Cycle Molding
Per hour
Hollow block
400*200*200mm
6PCS
20-25S
864-1080PCS
Paver Brick
200*100*60MM
21PCS
18-23S
3287-4200PCS
Paver Brick
200*160*60mm
12PCS
18-23S
1878-2400PCS
Solid Brick
240*115*53mm
30PCS
15-17S
6300-7200PCS
Certifications
Detailed Images

Machine Parts

Name: Motor
Brand: Siemens
Original: Siemens China
QT6-15D hydraulic press Brick Machine using famous brand motor siemens.its frequency is more wide to make sure working stable at any time.

Solenoid valve parts

Name: Solenoid Valve
Brand: Nothman
Original: Taiwan
QT6-15D hydraulic press brick machine using famous Northman or CALYGA solenoid valve from Taiwan.

it provide powerful strength for the hydraulic system.

PLC Controller

Name: PLC
Brand: Siemens
Original: Germany
QT6-15D hydraulic press brick machine using siemens brand PLC. its program more cute and smart.machine working more fast and efficiency.

1. Siemens 7" color touching screen

2.Siemens PLC

3. Artificial intelligence interface design

4. convenient -type aviation plug , easy to install the electric system and hydraulic system


Frequency converter

Name: Frequency adjust device
Brand: Roxroth
Original: Germany
QT6-15D hydraulic press brick machine using double frequency adjust device to make sure low frequency material feeding and high frequency vibration.


there is frequency converter in PLC control box . it can protect the motors from unstable voltage.

Our Service

Pre-Sales Service

According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Send foundation drawing and working video to customers.

Packing & Delivery
contact details

 Sales Manager --Linda

Whatsapp/Viber /Wechat : +86-13256512899
E-mail: linda at  sdhongfa.cn.

Thanks so much for your time . if you are intersted , just contact me at anytime  . we will provide best quality products and best service . waiting for your inquiry !
