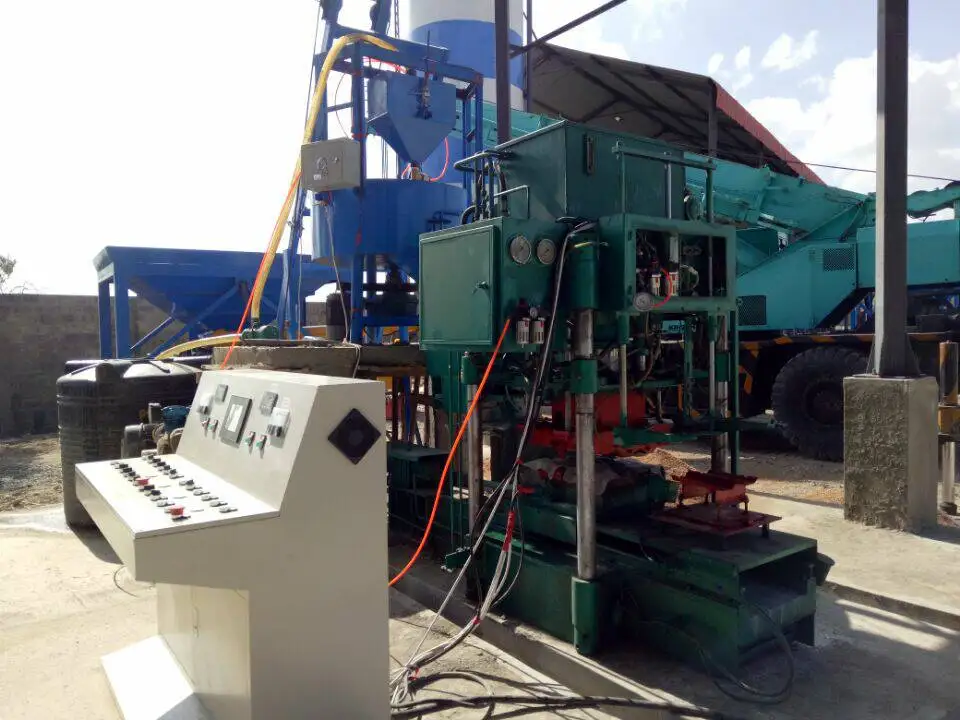

SMY8-128 roof tile machine colored concrete roof tile making machine

SMY8-128 roof tile machine colored concrete Roof Tile Making Machine

SMY8-128 Type color forming machine adopts PLC controlling system, full-hydraulic press and pneumatic to shape. Shaping quickly and dependable parameter, high productivity, high quality and competitive price.

Adopts pressing and filtrating concrete to shape. Having various kinds of finished product types and beauty in structure ,hihg density and strength, precision size, can satisfy all requirement of the construction.

It serves several purposes and producs all kinds of main tile. Ridge tile., cornice tile, slot tile and so on through changing molds.

t

SMY8-128  roof tile machine colored concrete roof tile making machine main technical parameter

1. productivity :6-8 pcs/min

2.building area:150m²

3.care area:60m²

4. power:18kw

5.specification size :424*337mm

6.Dimension:5.4*1.8*2.4M

7.Molding pressure:128T

Roof Tile Making Machine Production Procedures

1.Raw material→ 2.Bucket type elevator →3. Wheel type mixer→ 4. Quantitative constant  feeding machine→ 5. Roof tile making machine→6. Roof tile pallet→7. Roof tile curing rack→8.24 hours curing →9.paintng corlor →10.finished product roof tile

If you are interested in ,pls feel free to contact Linda by WhatsApp:+86-15264934636

Finished roof tile samples
