hebel AAC brick making machine in Indo price Autoclave Aerated concrete block plant
Product Description
hebel AAC brick making machine in Indo price Autoclave Aerated concrete block plant
1.AAC brick production line , Autoclaved Aerated Concrete Block Machine introduction
Areated concrete brick (light brick ) is the light and porous buidling material. It has light weight keeping temperature cant burn and other advantages.it can be made into many kinds of bricks(for example:600×200×100,80×80×180,240×115×53,600×200×125),they could be used industry building and common building.they are more and more popular in the world.in the future,they will replace the Clay brick completely.
2.AAC brick production line , Autoclaved Areated concrete block machine common conception
Common concrete density is usually 1600-2400kg/m3,but Areated concrete are 500kg/m3,600kg/m3,700kg/m3.It has not the big grain,main use silicon material (for example:coal ash,sand,stone dust and others ),through making the material small for example sand,they can be used directly if has enough degree of small (for example coal ash.Mixing calcium material lime cement water to a special slop,then add the aluminum dust and the additive.Make the aluminum dust and the special slop have a Chemical reflect.then produce Hydrogen to make the concrete slop to expanding or swell,foam.Next,put them into the curing room to concreting cutting steaming curing,last,there will bacome the light brick,the porous rate is 70-80%.
3. AAC brick production line , Autoclaved Areated concrete block machine Advantages
light weight
Areated concrete density is usually 400-700kg/m3,(according the market in produce ),same as 1/3 of clay brick and 1/5 common concrete.So use the Light brick can reduce the weight of the build more,and also reduce the beam of roof and pillar press best.then you can see,it can save the material and cost,it also fighting shaking.
keeping temperature
It has many porous,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as 1/4 or 1/5 of clay brick,so it is best materials now in the world. Also many kinds raw material,have lowest wasteMain Material:coal ash sand waste mine material coal stone,stone dust and other silicon materials.
General specification of AAC brick production line, autoclave aerated concrete block( mm )
| L | W | H |
| 600 | 100 120 125 150 180 200 240 250 300 | 200 240 250 300
|
Size deviation of autoclave aerated concrete block
| Item | Standard | ||||||
| High-class product(A) | Qualified product(B) | ||||||
| Allowed size deviation/ mm | Length | L | ±3 | ±4 | |||
| Width | B | ±1 | ±2 | ||||
| Height | H | ±1 | ±2 | ||||
We are one of the biggest AAC brick production line manufactures in china . our AAC with 75% market share . we have sold our AAC production lines to domestic , southeast asia, middle east and doemstic and so on.
About the AAC brick production line ,we can help you to design the land area , test the raw materials , installation . commissioning,traning the workers ,make the drawings and provide the good after-sales serive always.
Instructions of AAC brick Production Line from--Hongfa
Products Program
1,Technological Standard
The technological standard of this project is superior products according to the Chinese national standards. The equipments are made according to Chinese standard and criterion.
This project provides the mature tilting technology in China.
2,Capacity
The product is AAC blocks with the capacity of 30,000m3- 300,000m3/year
3. Product specification
The products reach the block requirements of grade 04~07 of GB11968-2006.
Ball MILL can treat the sand and lime raw material

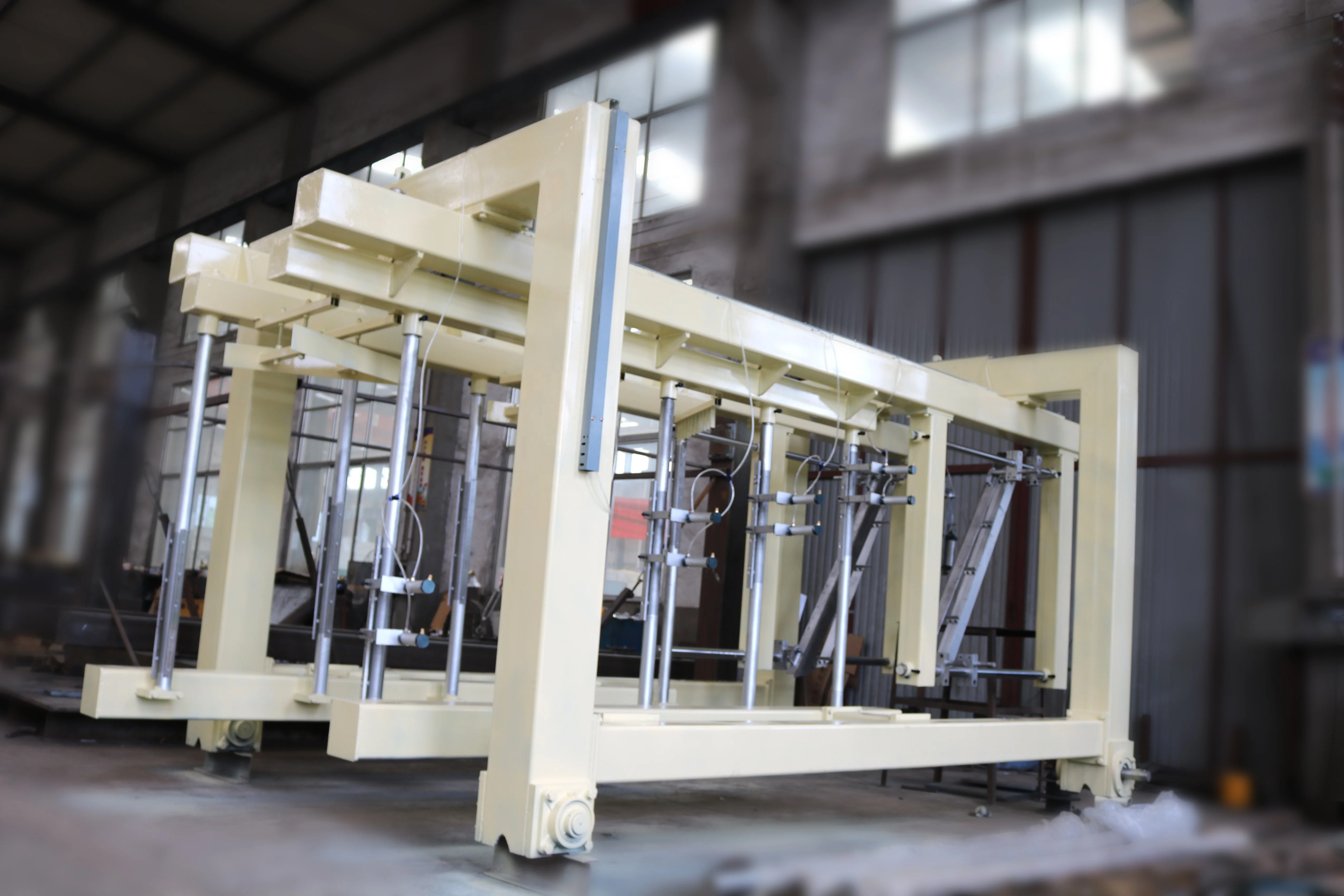

cutting machine for cutting the size of AAC blocks as your required

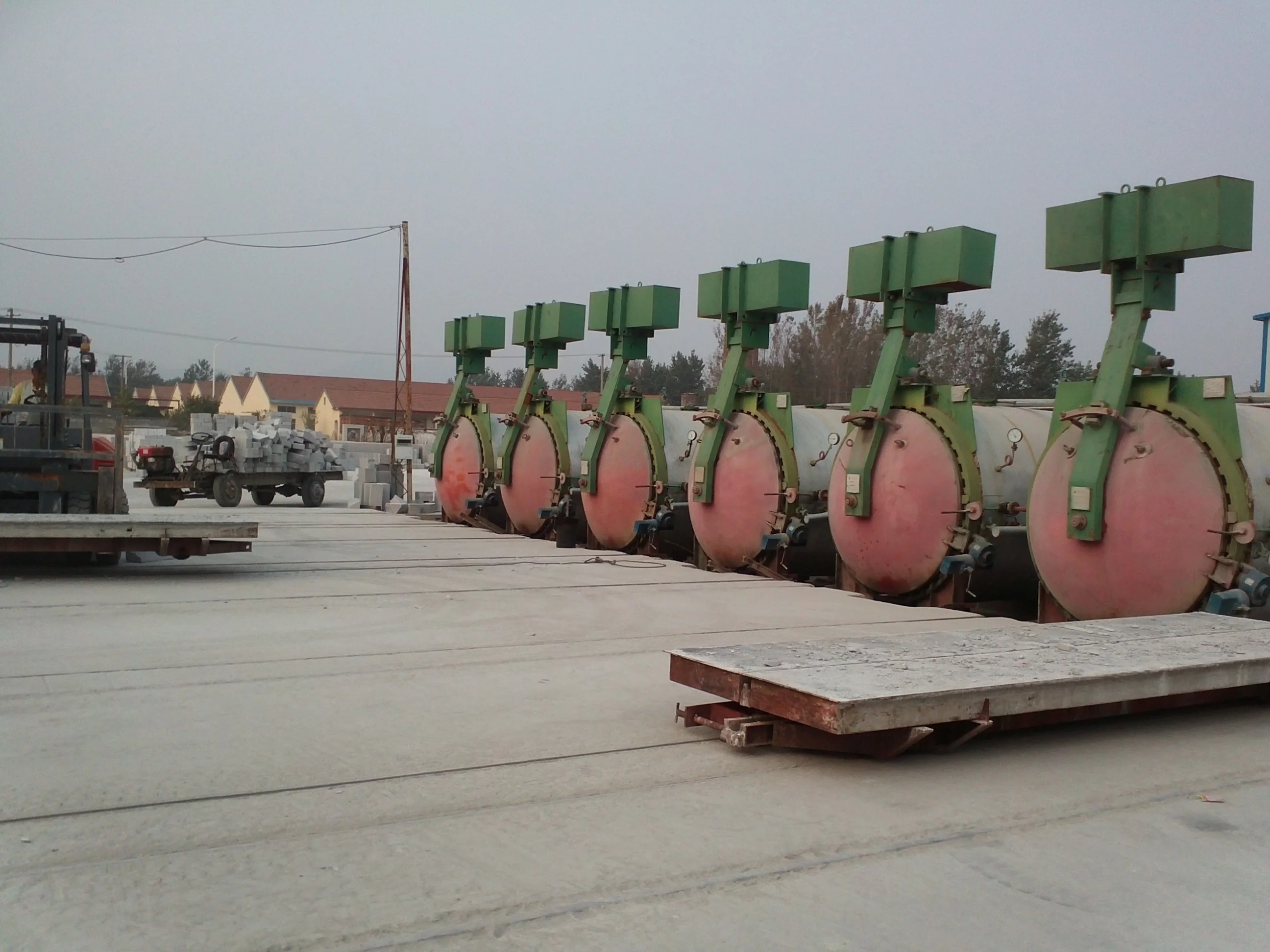

autoclave for steaming the AAC blocks
If you are interested in ,pls feel free to contact Linda by Whatsapp/Viber/Wechat +86-13256512899
